3.5x5.5m Single Timber Framed Garage

3.5 x 5.5m Single Timber Framed Garage

Garage specifications

• Size metres: 3.5m x 5.5m
• Framing size 45x70mm
• Cladding: ex 25x150mm weatherboard (other options available, POA)
• Framing and cladding are tanalised pressure treated

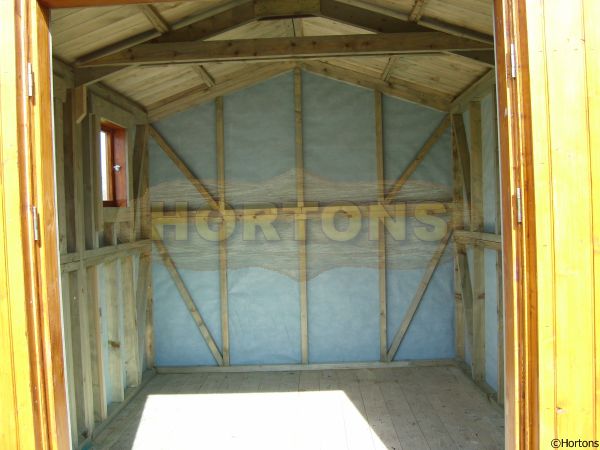

• Breather membrane lining to all walls
• Metre run of internal partitioning included: 0
• Eaves height metres: 2.3
• Ridge Height metres: 3.00

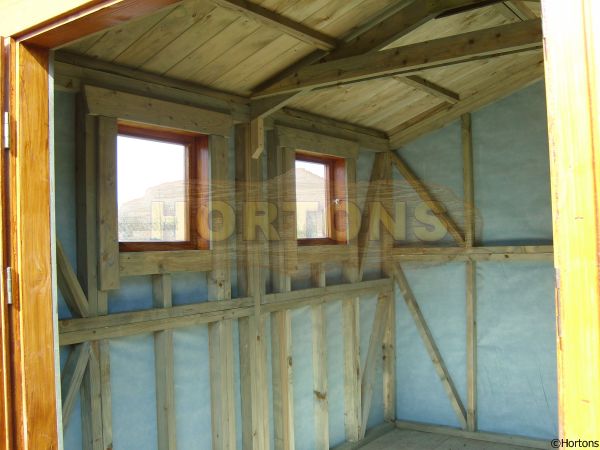

• Purlin and trussed roof
• T&G roof board thickness: 19 mm
• No floor boards included (available as an optional extra)
• Roofing material included: Felt shingles
• Fully boarded personal door
• Single glazed opening single windows 980x710mm : 1
• 1 Pair of side hung timber garage doors 2050x2475mm (different sizes available, POA)

• Optional roofing materials available:

• Torch-on felt
• Onduline
• Corrugated galvanised steel
• Cedar shingles
• Metrotiles
• Concrete interlocking tiles
• Concrete plain tiles
• Machine made clay plain tiles
• Hand made clay tiles
• NB: Roof pitch may need to be increased with certain roofing options at extra cost

• General options available:

• Guttering
• Up & over doors
• Personal doors
• Internal lining and insulation
• Base preparation (depending on location)
• Wood preservative painting with Remmers HK stain (1 coat)
• Bespoke service available

All of our large timber framed buildings are now supplied using our "Easibuild" system which makes it much easier to build (for DIYers and contractors) - no large panels to wrestle with, but a stronger construction as a result with a build time that takes no longer than with large panels (more likely a quicker build time with less manpower required). This sytem is described more fully here

If you intend to tile your garage with heavy concrete or clay tiles, then we can supply a fully trussed roof to BS5268 at extra cost (a panelised roof system is not usually supplied with this type of roof ).

The main picture above shows upgraded garage with concrete tiles, increased roof pitch and guttering
